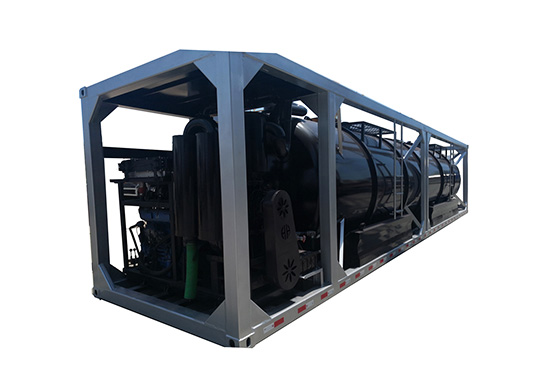

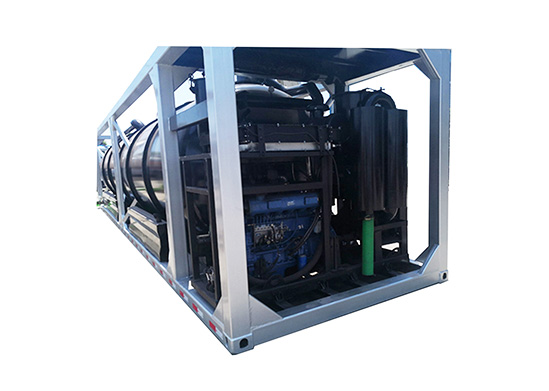

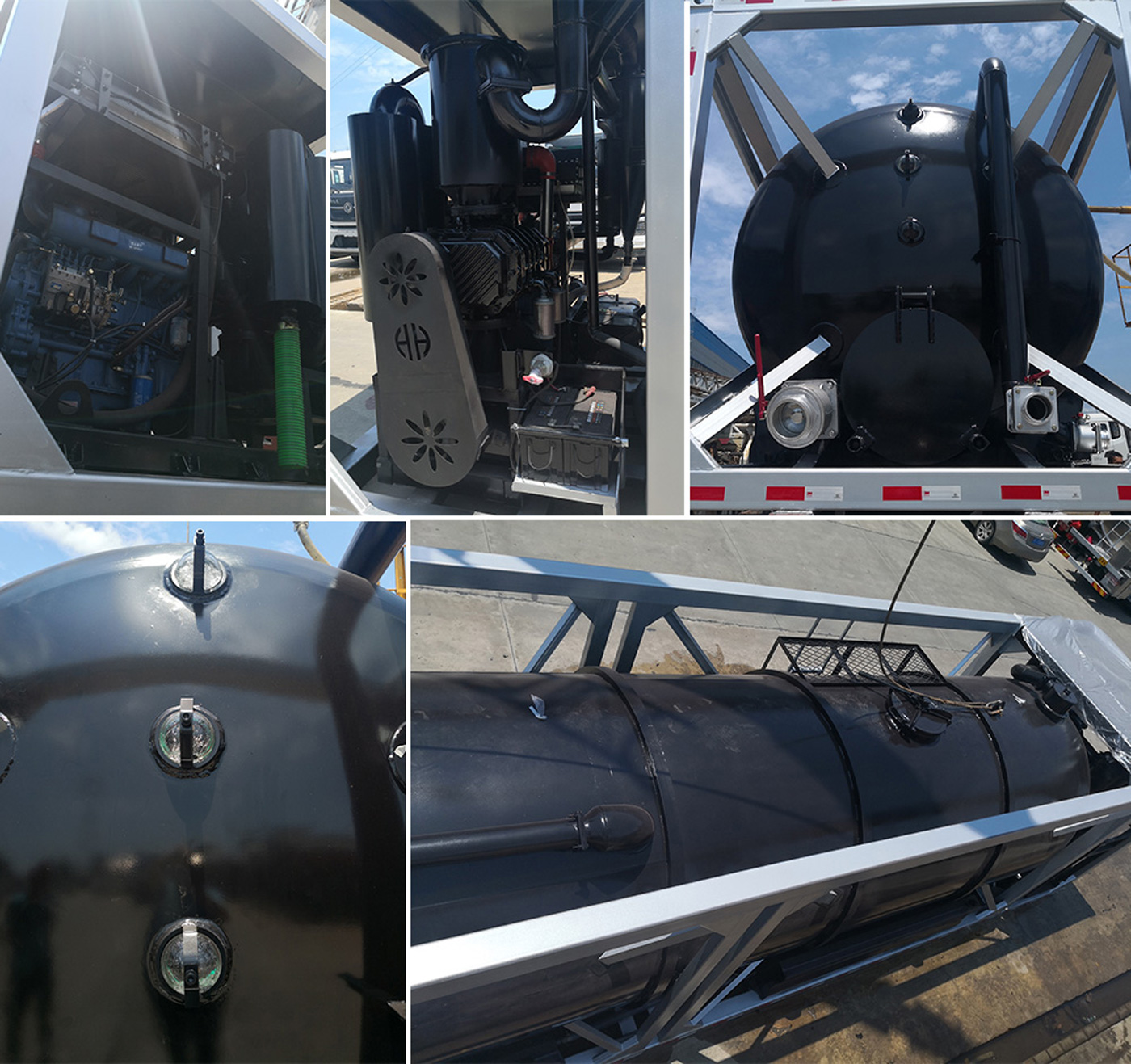

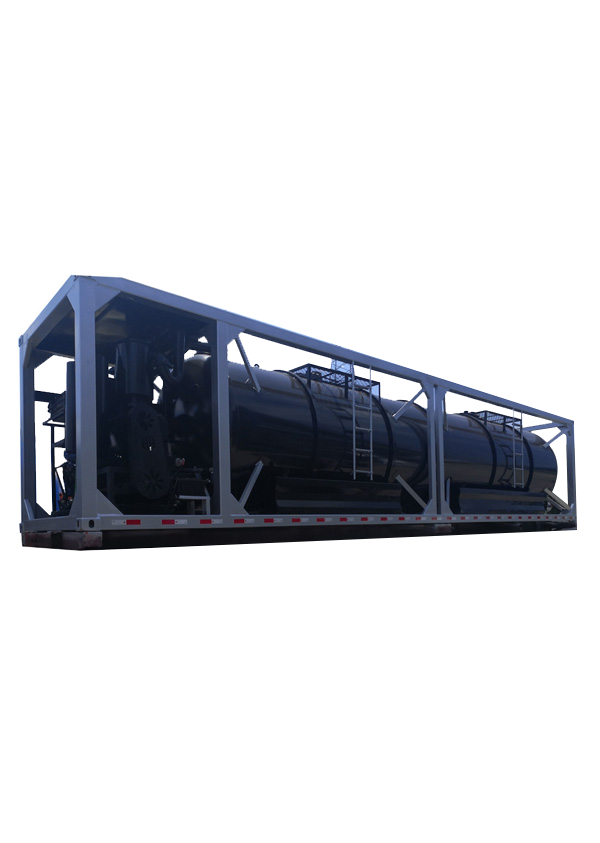

Customized Tank Container

This product is a customized tank container
Transportation medium: sewage, this product is a high vacuum sewage suction tank
Unloading method: loading and unloading

Product Introduction

Transportation medium: sewage, this product is a high vacuum sewage suction tank

Unloading method: loading and unloading

1: The total assets of the factory are USD 120million. Our factory occupies a total area of 421 acres, and the company is equipped with more than 700 sets of equipment. French plasma/TIG welding machine, Swedish plate bending machine, fully automatic X -ray real-time imaging flaw detection and inspection system, leading the global tank container manufacturing production line.

2: Our team is more than 800 people, including more than 150 senior technicians, advanced production technology, strong manufacturing capabilities, and a perfect QA/QC quality control system.

3: We have a strong sales team. Our sales staff have been trained in professional skills for more than one year before taking up the job. They have a deep understanding of the tank container product structure and can provide users with high-quality and efficient services and rationalized product solutions.

4: main products:

ISO tank container (liquid tank container, solid tank container, gas tank container), container transportation semi-trailer, etc., and other logistics transportation equipment. Size, color and others can be changed and customized according to your needs.

Customized Tank Container

Customized Tank Container

product Overview
product name 36 cubic sewage suction tank model LSXC9400GXW
Transport medium Liquid dirt Volume 36 cubic
Overall dimensions(mm) 12192*2438*2591 Tank size(mm) 10400*diameter 2100
Weight (kg) 12300 Load (kg) 36000
Production cycle 30 days Warranty/Certificate Have
Product parameters (main configuration)
Item Specification Remark
Tank material 304L/8mm
Beam material Q235/8mm
shape Round
Tank volume 36 cubic
Tank material Head 304L/8mm, cylinder 304L/8mm
Vacuum pump Water ring vacuum pump
Ultimate vacuum 0.093Mpa
Rotating speed 740r/min
Maximum pumping speed 42 cubic meters/min
power 90KW
caliber Import: DN150, Export: DN150
Water consumption 100-150L/min
Total pump weight 460KG
Auxiliary engine WD12.220 With one-key start
Engine brand Weichai
Fuel type diesel fuel
